300L High Absorption Blue Titanium Flat Plate Solar Water Heater
Panel Stainless Steel Inner Tank
Specification:
Inner tank: 1.5mm thickness SUS304/2B stainless steel (Pressure),
Inner tank: 0.4mm thickness SUS304/2B stainless steel (
Non-Pressure),
outer tank: 0.40mm Galvernized steel
50MM polyurethane insulated foam.
Bracket: 1.5mm stainless steel

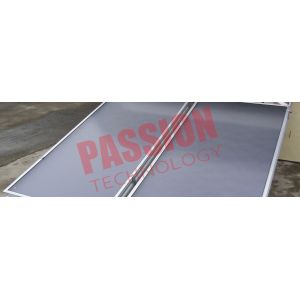

Flate Panel specification:
Surface Treatment: Black Chrome
Cover material: 3.2mm Low iron, tempered glass, Transmission
>91.7%
Header Material: 25 x 0.6 copper
Riser tuber size: Copper TP2 10x 0.4MM
Thermal Insulation:2 4K Fiberglass
Back Plate: Galvanized steel
Max working pressure: 0.6Mpa
| Model | PT-100L | PT-150L | PT-200L | PT-300L |
Flat Panel
1000 x 2000 x 80mm |
One pcs
|
One pcs
|
Two pcs
|
Two pcs
|
| Absorbing Area | 2m2 | 2m2 | 4m2 | 4m2 |
| Inner tank dimension | 380mm | 440mm | 440mm | 440mm |
| Outer tank dimension | 480mm | 540mm | 540mm | 540mm |
| Tank length | 1060mm | 1200mm | 1550mm | 2200mm |
| Packing size (Tank) | 1160 x 480 x 480mm | 1300 x 590 x 560mm | 1650 x 590 x 560mm | 2300 x 590 x 560mm |
| 20ft container | 52 sets | 40 sets | 27 sets | 23 sets |
| 40HQ container | 126 sets | 97 sets | 66 sets | 55 sets |
What's the application of our flat panel water heater system?
1. Hotels, resorts, hospitals and hostels
2. Process industry, boiler feed, laundry and canteens
3. Agricultural sector, hatcheries and dairies
4. Process industry, Boiler feed, Laundry and canteens
5. Agricultural sector, hatcheries, and dairies
6. Swimming pool heating
7. In-process heating
8. Health clubs (Steam / Sauna)
Packaging & Shipping
Shipping
1. By Air or by Sea for batch goods, for FCL; Airport/ Port
receiving;
2. Customers specifying freight forwarders or negotiable shipping
methods!
3. Delivery Time: 7-10 days for samples; 15-25 days for batch
goods.
Payment Terms
1. Payment: T/T; 30% deposits; 70% balance against copy of original
BL.
2. MOQ: 1pcs
3. Warranty : 6 years.
Advantage of flat plate of solar water heater
1. Safe and steady
Solar collector uses all cooper fluid tube; System operating is
steady; components are not easy to be damaged;
2. Pressurized operating
Working pressure is 0.6Mpa; designed pressure is 1.2Mpa; the hot
water is forced to stream out from the top; it is convenient to
use.
3. High heat efficiency
Absorbing coating of the collector is black chrome and blue
sputtering; absorbing rate is 92-96%, and emission rate is 5%-15%;
heat efficiency is high
4. Good temperature preservation
Thickness illustration layer is 65mm; constant temperature high
pressure quantitative foam; less than 5 Celsius Degree per 24
5. Long using life
Inner tank is 2mm high quality steel with 4mm cross linked
polyethylene; resist high temperature and corrosion; 30 years using
life.
6. Several models fulfill different user need
According to customers requirement, we put our several modes with
different specifications to suit flatlet, villa, hotel and
factories. , etc
7. Easy installation
In order to suit different kinds of building construction, we
search and produce several kinds of bracket construction, which are
convenient to install and handsome appearance.
8. Resist freeze
System has freeze resisting function which can be used in high
latitude and cold area whether summer and winter.
FAQ
1- What is your Delivery Time?
LCL order/Sample order:10days.
Full container order:14days.
2- What is your Guarantee Time?
5 years.
Provide you with some extra accessories and vacuum tubes, they are
free for you.
3- Can you accept OEM ?
YES
4- What is your Payment Term?
We accept T/T or L/C at sight, Western Union.
5- What is your MOQ?
1 sets
6- What is your Packing?
LCL order/Sample order in wood cartoon
Full container order in high quality export carton
7- What is your FOB Port?
We accept FOB Shanghai, Ningbo etc.
8.- What is your Monthly Production Capacity?
6000 sets
9- What is your Shipping Term?
By Sea/Air/Rail
