3LCII Series Plastic Impeller Solar Water Well Pumping Systems In Built Controller

Pump Home Pump

IN-BUILT CONTROLLER SOLAR PUMP

1.Easy installation and easy operation, connect with solar panel directly, no need

external controller

2.Can be powered by both solar panel and battery

3.Brushless permanent magnetic motor, controller inside, long working life and

high working efficiency

4.Over voltage and under voltage protection

5.Over current protection

6.Locked rotor protection

7.Lost phase protection

8.Reverse protection

9.MPPT function( maximum power point tracking)

10.Low temperature rise

Material Of Pump

◎ Outlet: 201 stainless steel

◎ Pump head: 201 stainless steel

◎ Pump body: 201 stainless steel

◎ Impeller: Plastic impeller

◎ Motor: Permanent magnet DC brushless motor

◎ Cable: 2M

◎ Oil cooling

◎ MPPT function controller

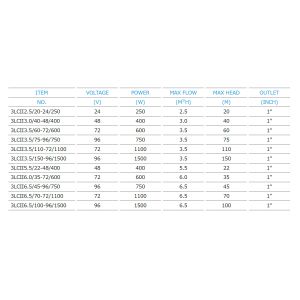

Model Analysis

3LCII2.5/20-24/250

3:3 inch pump body dimension

LCII: LARENS centrifugal In-Built impeller solar pump

2.5: Max flow

20: Max head

24: Pump voltage

250: Pump power

Product Features

◎ Only use it for clean water

◎ Max head is 150M. max flow is 6.5M3/H

◎ Fit for small farm, livestock

◎ Warranty: 1 year
